Hot Air Oven |
 |

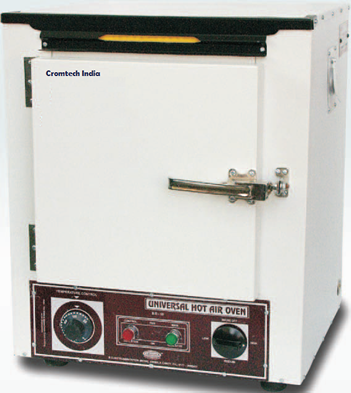

| Hot Air Oven - Memmert type with three side heating element |
- Standard wall fabrication, Inner chamber made of richly anodized aluminum or highly polished stainless steel sheet. Exterior fabricated out of thick milled steel sheet duly finished in shoved enamel off-white paint or powder coating color combinations. The gap between the walls is filled with special grade glass-wool for heat insulation. Inner chamber is ribbed for placing shelves at convenient levels. Provide with two or three removable shelves. A special elegant closing device has been provided.
|
- Nichrome wire heating elements provided on three sides attain quick and uniform heating in range of 50 °C to 250 °C or 300°C ± 2°C, controlled by capillary type
thermostat. L-shaped
thermometer is built-in type. Control panel is provided with selector switch of high or low
rates of power thermostat, control Knob and indicators for mains & thermostat. Supplied with cord and plug. The equipment is suitable to operate on 220 V AC 50 Hz
|
| |
| Chamber Sizes |
| |
| Size in mm |
Size in Inches |
No. of Shelves |
| 300 x 300 x300 |
12”x 12”x12" |
2 |
| 275 x 400 x 275 |
11”x 16”x11" |
2 |
| 350 x 350 x 350 |
14”x 14”x14" |
2 |
| 400 x 400 x 400 |
16”x 16”x16" |
2 |
| 450 x 450 x 450 |
18”x 18”x18" |
2 |
| 600 x 450 x 450 |
24”x 18”x18" |
2 |
| 600 x 600 x 600 |
24”x 24”x 24" |
2 |
| 900 x 600 x 450 |
36” x 24”x18" |
2 |
| 900 x 600 x 600 |
36”x 24”x24" |
2 |
| 900 x 900 x900 |
36”x 36”x36" |
3 |
|
 |
| Optional |
- Air circulating fan.
- Timer 0-24 hours
- Microprocessor PID Controller
- Digital temp indicator-cum-Controller.
|
